DLA-12-10-A-50-HS2-IP65
DLA-12-10-A-50-HS2-IP65
≥ 1 pcs
€225,50
≥ 5 pcs
€189,90
≥ 25 pcs
€164,60
≥ 50 pcs
€109,30
≥ 100 pcs

Online verfügbar

Spannung
12V
Maximum Force
300N
Feedback
Hall sensor
Speed at maximum load
25mm/s
Stroke length
50mm
Strom bei maximaler Belastung
3A
Weight
1,03kg
SKU
16012211
Some of the possible customizations:
Stroke length (min. 25.4mm – max. 500mm)
Limit switch output signals
Control box & hand controller
Noise level (min. = 55dB)
Dimension tolerances
Vertical or horizontal mounting holes
Front connector material/type/dimensions
Motor pinion material
Voltage (36VDC, 48VDC)
Connectors
Cabling
For any inquiries regarding customizations, please contact us at:
Datenblatt

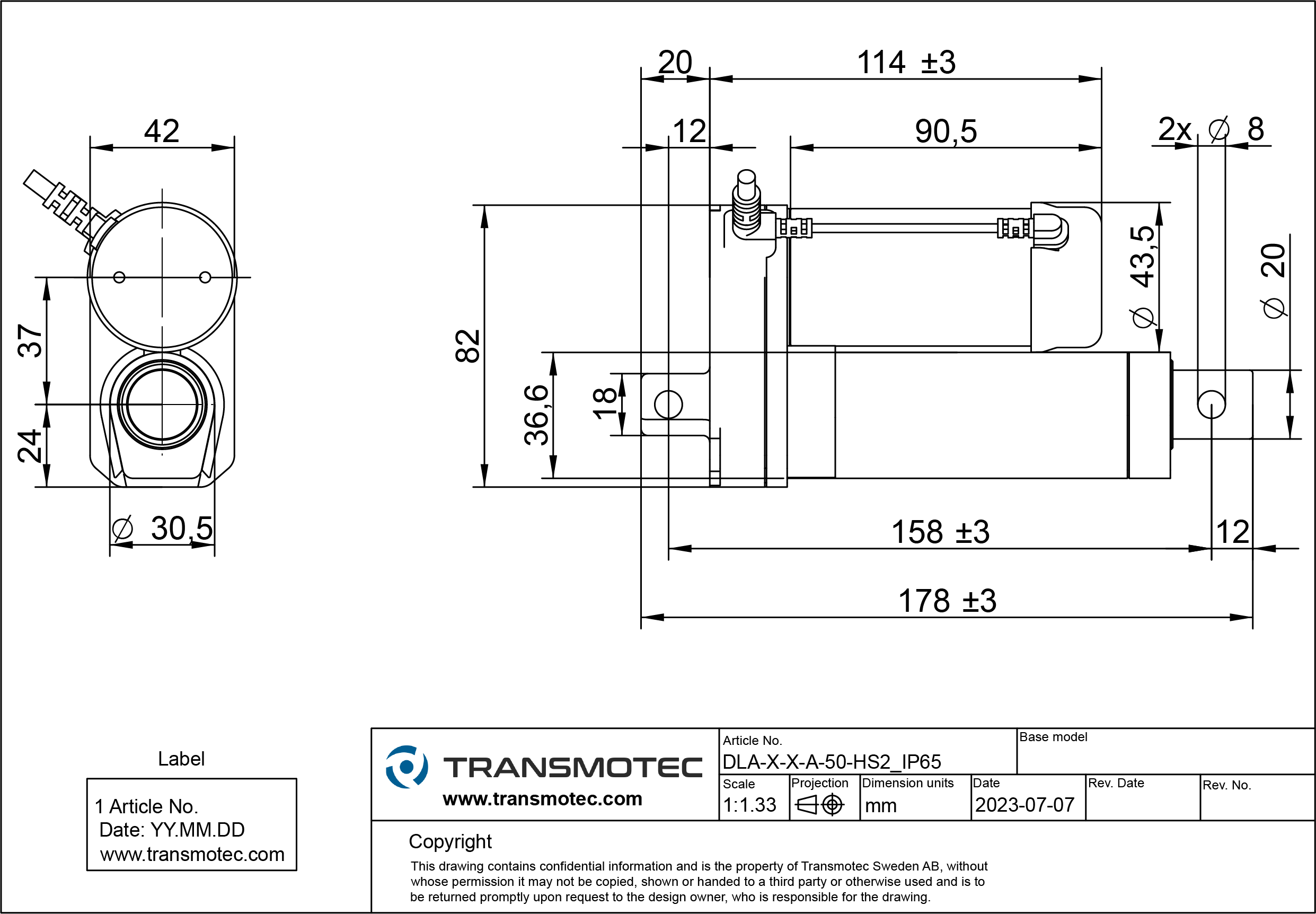

Zeichnung
Katalog
3D CAD (.stp)
