Home / Elektrozylinder  / DLA-series / DLA-12-10-A-200-IP65
DLA-12-10-A-200-IP65
DLA-12-10-A-200-IP65
≥ 1 pcs
€216,70
≥ 5 pcs
€182,80
≥ 25 pcs
€158,50
≥ 50 pcs
€105,30
≥ 100 pcs

Online verfügbar

Specification Customization Drawing Data sheet and downloads
Specification
Spannung
12V
Maximum Force
300N
Feedback
No
Speed at maximum load
25mm/s
Stroke length
200mm
Strom bei maximaler Belastung
3A
Weight
1,33kg
SKU
16012014
Customization
Some of the possible customizations:
Stroke length (min. 25.4mm – max. 500mm)
Limit switch output signals
Control box & hand controller
Noise level (min. = 55dB)
Dimension tolerances
Vertical or horizontal mounting holes
Front connector material/type/dimensions
Motor pinion material
Voltage (36VDC, 48VDC)
Connectors
Cabling
For any inquiries regarding customizations, please contact us at:
Data sheet and downloads
Datenblatt

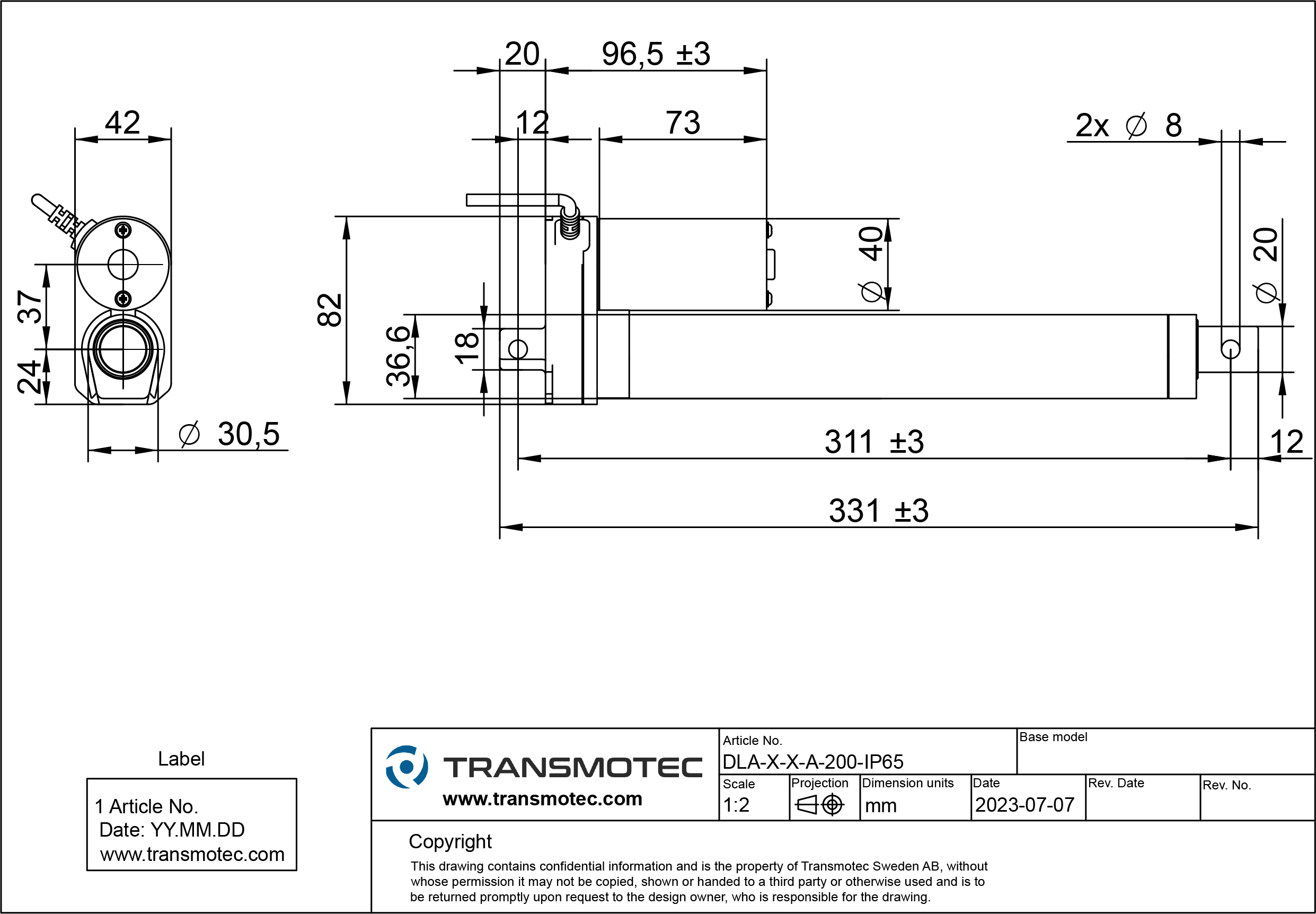

Zeichnung
Katalog
3D CAD (.stp)
