DLA-12-10-A-300-POT-IP65
DLA-12-10-A-300-POT-IP65
≥ 1 pcs
€285,70
≥ 5 pcs
€242,20
≥ 25 pcs
€210,60
≥ 50 pcs
€139,80
≥ 100 pcs

Online verfügbar

Spannung
12V
Maximum Force
300N
Feedback
Potentiometer
Speed at maximum load
25mm/s
Stroke length
300mm
Strom bei maximaler Belastung
3A
Weight
1,95kg
SKU
16012116
Some of the possible customizations:
Stroke length (min. 25.4mm – max. 500mm)
Limit switch output signals
Control box & hand controller
Noise level (min. = 55dB)
Dimension tolerances
Vertical or horizontal mounting holes
Front connector material/type/dimensions
Motor pinion material
Voltage (36VDC, 48VDC)
Connectors
Cabling
For any inquiries regarding customizations, please contact us at:
Datenblatt

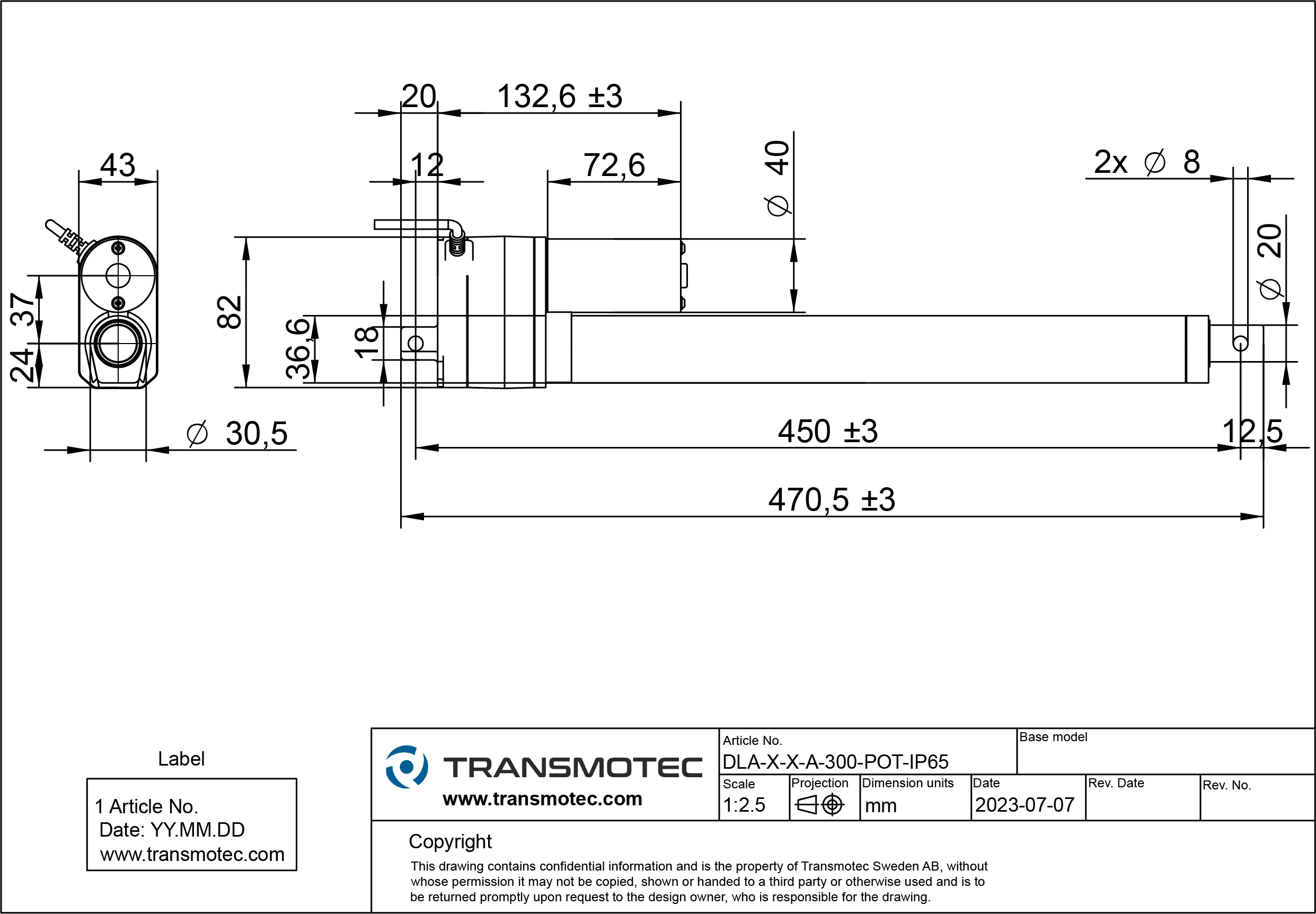

Zeichnung
Katalog
3D CAD (.stp)
